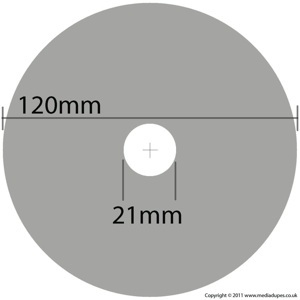

Disc - Artwork Specifications:

Deviation from these specifications may delay the project.

Total size: 120mm x 120mm

Print bleed: 2mm from outer edge, 4mm from centre hole

Text and ring text must be 2mm or more away from the outer edge and not under 4mm from the centre hole.

Do not: Put black rings or circles on the artwork to signify disc hole or perimeter!

Artwork must be: Minimum 300 dpi (CMYK)

File type accepted:

PDF (flattened) for Replication.

JPEG (RGB) for Duplication.

Jewel Case inlay and booklet - Artwork Specifications:

Deviation from these specifications may delay the project.

Artwork must be: Minimum 300 dpi (CMYK)

File type accepted: PDF (flattened)

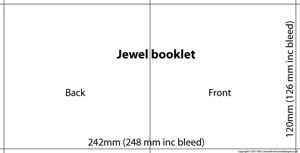

Jewel Booklet

Image Size including bleed: 248mm X 126mm

If you are creating four page booklets supply two separate images mark inner and outer.

Artwork must be: Minimum 300 dpi (CMYK)

File type accepted: PDF (flattened)

Single Front Inlay

Image size including bleed: 127mm X 126mm

If you are creating double sided inlay send two separate images mark inner and outer.

Tray (Back) Inlay

Image size including bleed: 157mm X 124mm

If you are creating double sided tray send two separate images mark inner and outer.

DVD library case - Artwork Specifications:

Deviation from these specifications may delay the project.

Artwork must be: Minimum 300 dpi (CMYK)

File type accepted: PDF (flattened)

If you are creating double sided insert send two separate images mark inner and outer.

DVD Inlay (Outer Wrap)

Total Image Size Should Be:

279mm X 189mm

DVD Booklet

Total Image Size Should Be:

246mm X 186mm

DVD inlay total image size: 279mm X 189mm

DVD booklet total image size: 246mm X 186mm

Two images are needed for double sided DVD inlay

Two images are necessary for four page DVD booklet

Four images are required for an eight page booklet.

Artwork must be: Minimum 300 dpi (CMYK)

File type accepted: PDF (flattened)

IS YOUR ARTWORK THE CORRECT ABOVE MEASUREMENTS?

If you are unsure about any of the above please call us on 01392 495778.
